Key Management System
Optimize and simplify your operations with a leading Key and Asset management system.
Series K

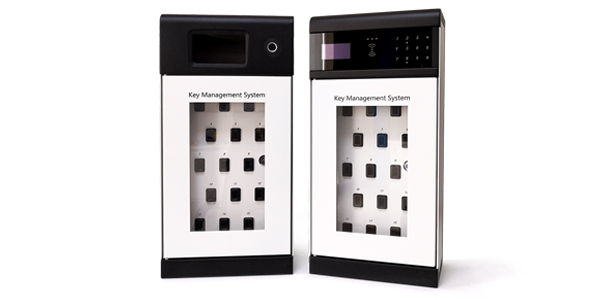

Introducing Series K – a straightforward, efficient, and economically viable independent key management system. Merging avant-garde technology with a sturdy design, Series K offers smart buildings the capability to manage up to 26 keys seamlessly within a user-friendly, plug-and-play module. The integration of Biometric Fingerprint and Face recognition ensures swift access while bolstering security.
K26 | Android
Key Capacity: 26
Dimensions: 566 x 177 x 380mm
Weight: 17kg
Material: 1.5mm thick steel + ABS
Terminal: Android Terminal
Operating System: Android 4.4
Display: 7″ Touchscreen
Power Supply: 110v / 220v > 12V 5Ah
Power Consumption: 60W Max
K26 | Android
Key Capacity: 26
Dimensions: 566 x 177 x 380mm
Weight: 17kg
Material: 1.5mm thick steel + ABS
Terminal: Android Terminal
Operating System: Android 4.4
Display: 7″ Touchscreen
Power Supply: 110v / 220v > 12V 5Ah
Power Consumption: 60W Max
Series i-Keybox 2023 (New Arrival!)
Building upon the legacy of its predecessor, the i-Keybox Series 2023 has undergone transformative enhancements in design, performance, and features, addressing the limitations of the earlier version. This updated iteration flaunts a revamped aesthetic, including a fresh design style and cabinet hue, accompanied by the inclusion of an automatic door feature. Customers can now opt for the advanced all-in-one model, enhancing both functionality and security. Inside, the established keyslot group design remains, but it has been fortified with a robust key bolt, ensuring greater durability and reliability. This fusion of familiar design elements with new innovations promises users both comfort and state-of-the-art performance.
i-Keybox YT-S
Key Capacity: 16
Dimensions: 670W x 500H x 190D mm
Weight: 22kg
Material: Steel + Acrylic
Terminal: Standard Terminal
Communication Mode: TCP/IP
Database: SQL Server/Microsoft Access
Power Supply: 110v / 220v > 12V 5Ah
Power Consumption: 60W Max
i-Keybox YT-M
Key Capacity: 32, 40, 48
Dimensions: 670W x 640H x 190D mm
Weight: 36-37kg
Material: Steel + Acrylic
Terminal: Standard Terminal
Communication Mode: TCP/IP
Database: SQL Server/Microsoft Access
Power Supply: 110v / 220v > 12V 5Ah
Power Consumption: 60W Max
i-Keybox M
Key Capacity: 32, 40, 48
Dimensions: 793W x 640H x 200D mm
Weight: 40-42kg
Material: Steel + Acrylic
Terminal: Andriod Terminal
Operating System: Android 4.4
Display: 7″ Touchscreen
Power Supply: 110v / 220v > 12V 5Ah
Power Consumption: 60W Max
i-Keybox XL
Key Capacity: 100, 150, 200
Dimensions: 876W x 1820H x 600D mm
Weight: 120-137kg
Material: Steel + Acrylic
Terminal: Andriod Terminal
Operating System: Android 4.4
Display: 7″ Touchscreen
Power Supply: 110v / 220v > 12V 5Ah
Power Consumption: 60W Max
Series i-Keybox
Series i-Keybox offers standardized key cabinet solutions tailored for industrial users. Its flexible design allows for customizable key slot configurations, enabling users to modify the number of keys as needed. Opting for a floor-standing cabinet can amplify the key holding capacity up to 240 in a single unit. The system’s control terminal leverages TCP/IP communication, allowing for limitless connectivity of control terminals through a TCP/IP network. For a modern touch, users have the option to select an Android terminal equipped with a 7-inch touchscreen interface.
i-Keybox 24, 32, 50, 60, 70, 80, 90
Key Capacity: 24, 32, 50, 60, 70, 80, 90
Dimensions: 869W x 888H x 208D mm
Weight: 36-55kg
Material: Steel + Acrylic
Terminal: Standard Terminal
Communication Mode: TCP/IP
Database: SQL Server/Microsoft Access
Power Supply: 110v / 220v > 12V 5Ah
Power Consumption: 60W Max
i-Keybox 100, 150, 200, 240
Key Capacity: 100, 150, 200, 240
Dimensions: 893W x 1820H x 400D mm
Weight: 95-150kg
Material: Steel + Acrylic
Terminal: Standard Terminal
Communication Mode: TCP/IP
Database: SQL Server/Microsoft Access
Power Supply: 110v / 220v > 12V 5Ah
Power Consumption: 60W Max
i-Keybox 24, 32, 50, 60, 70, 80, 90
Key Capacity: 24, 32, 50, 60, 70, 80, 90
Dimensions: 869W x 888H x 208D mm
Weight: 36-55kg
Material: Steel + Acrylic
Terminal: Andriod Terminal
Operating System: Android 4.4
Display: 7″ Touchscreen
Power Supply: 110v / 220v > 12V 5Ah
Power Consumption: 60W Max
i-Keybox 100, 150, 200, 240
Key Capacity: 100, 150, 200, 240
Dimensions: 893W x 1820H x 400D mm
Weight: 95-150kg
Material: Steel + Acrylic
Terminal: Andriod Terminal
Operating System: Android 4.4
Display: 7″ Touchscreen
Power Supply: 110v / 220v > 12V 5Ah
Power Consumption: 60W Max
Series A
The Series A stands out as one of our top-selling key cabinet lines. It boasts a robust yet sleek design, ensuring durability while maintaining user-friendliness. Its plug-and-play feature ensures hassle-free setup, and its versatility is unmatched, promising optimal security. The series caters to a global audience with multilingual support, offers diverse sign-in options, and enhances security measures with two-factor authentication and photo capture capabilities.
A-180E | Android
Key Capacity: 18
Dimensions: 400 x 500 x 180mm
Weight: 17kg
Material: 1.5mm thick steel
Terminal: Android Terminal
Operating System: Android 4.4
Display: 7″ Touchscreen
Power Supply: 110v / 220v > 12V 5Ah
Power Consumption: 60W Max
A-180E | Android
Key Capacity: 18
Dimensions: 400 x 500 x 180mm
Weight: 17kg
Material: 1.5mm thick steel
Terminal: Android Terminal
Operating System: Android 4.4
Display: 7″ Touchscreen
Power Supply: 110v / 220v > 12V 5Ah
Power Consumption: 60W Max
Series Drop Box
Tailored for establishments like Hotels, Airbnb, and car wash centers, the Series Drop Box offers a seamless solution for after-hours key retrieval. This system eliminates the need for extended staff hours, providing a self-service feature. Upon entering the correct PIN, customers can effortlessly access the securely sealed key, which is auto-released from within the box. Any unauthorized attempt triggers an alarm, ensuring utmost security. Crafted to withstand the elements, the drop box is both waterproof and versatile for both indoor and outdoor placements.
A-180D S1 | Android
Key Capacity: 15
Dimensions: 485 x 553 x 200mm
Weight: 27.3kg
Material: 1.5mm thick steel
Terminal: Android Terminal
Operating System: Android 4.4
Display: 7″ Touchscreen
Power Supply: 110v / 220v > 12V 5Ah
Power Consumption: 60W Max
A-180D S2 | Android
Key Capacity: 15
Dimensions: 486 x 705 x 204mm
Weight: 25kg
Material: 1.5mm thick steel
Terminal: Android Terminal
Operating System: Android 4.4
Display: 7″ Touchscreen
Power Supply: 110v / 220v > 12V 5Ah
Power Consumption: 60W Max
